Drilling Into New Build Walls: What You Need to Know

Ever wondered if you can safely drill into a brand‑new wall? In a fresh‑build home the walls look solid, but hidden studs, wiring, and regulations can turn a simple hole into a costly mistake. This guide walks you through the what, why, and how of drilling into new build walls so you can avoid surprises and stay within the law.

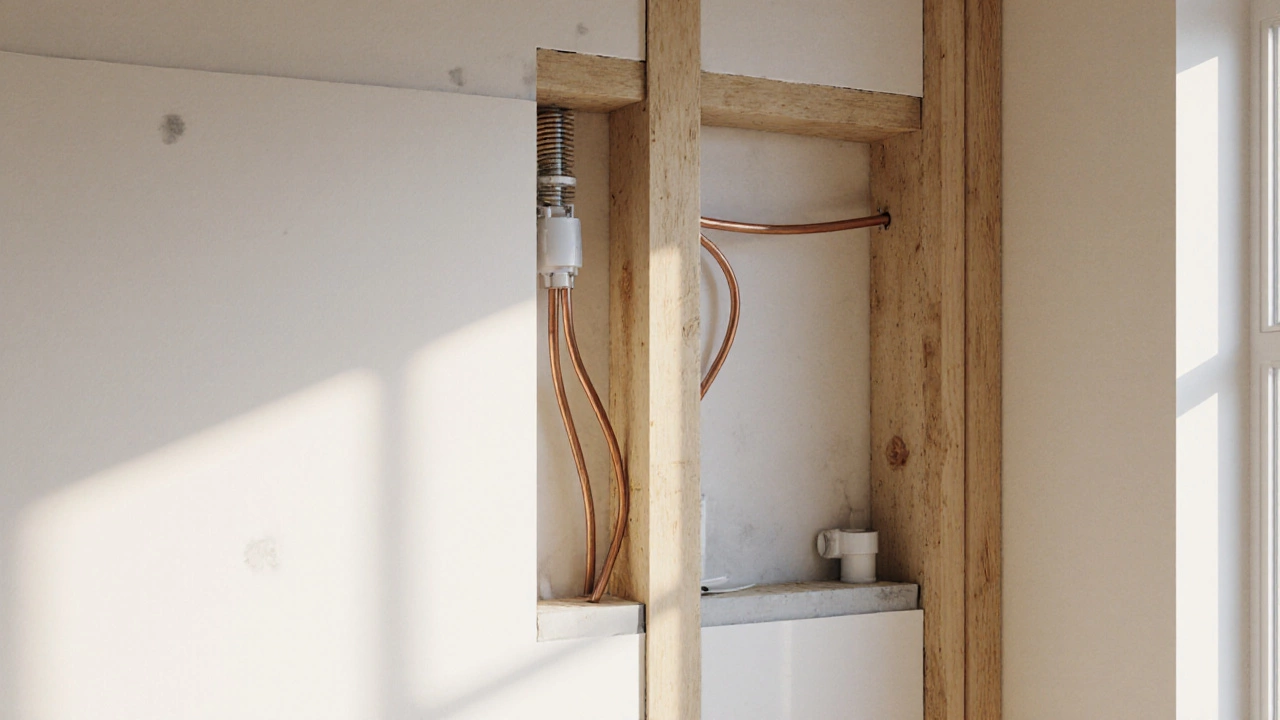

What Makes a New Build Wall Different?

When you hear the term New Build Wall is a wall constructed as part of a newly completed residential or commercial building, think of plasterboard attached to a timber or steel stud framework. In the UK most modern homes use plasterboard (also called dry­wall) that complies with British Standard 5628 - a specification for the performance of gypsum panels. The studs are usually 45 mm by 70 mm timber, spaced 400 mm apart, and may be concealed behind the board.

Are You Allowed to Drill? Legal and Structural Limits

The short answer: yes, but with conditions. Building Regulations (Approved Document B) require that any penetration of load‑bearing walls does not compromise structural integrity.

Key rules to remember:

• Never drill larger than 30 mm in a load‑bearing wall without a structural engineer’s sign‑off.
• Maintain at least 150 mm clearance from any identified electrical wiring or pipe.
• Use fire‑rated fittings when drilling through fire‑separating walls.

If you’re unsure whether a wall is load‑bearing, treat it as such until proven otherwise. In many new builds the external walls are structural, while internal partition walls often aren’t, but always verify with the building plans.

How to Locate Hidden Services Before You Drill

Finding studs, wires, and pipes is the first safety step. A decent stud finder (magnetic or electronic) can detect the timber frame, but it won’t show live cables. Follow these steps:

1. Check the construction drawings for service routes. In Manchester many new builds use a “concentric” wiring layout with cables running vertically through the studs.
2. Use a non‑contact voltage detector to confirm no live wires lie behind the board.
3. Tap the surface - a hollow sound usually means a cavity, while a solid thud indicates a stud.
4. If you spot a pipe, note its material; copper and PVC behave differently under drilling stress.

Choosing the Right Drill and Bit

Not all drills are created equal. Below is a quick comparison of the most common tools for new‑build wall drilling.

For most new‑build plasterboard jobs a standard hammer drill with a carbide‑tipped wood‑bit will do the trick. If you hit a concrete run‑back, swap to a rotary hammer with a masonry bit.

Step‑by‑Step Drilling Technique

1. Mark the exact spot with a pencil. Measure twice, especially near windows and doors where studs are often placed.
2. Set the drill to the appropriate speed - low RPM for wood, higher RPM for plasterboard.
3. Start with a 3 mm pilot hole to confirm you’re not hitting a hidden service.
4. Increase to the final bit size, applying steady pressure without forcing the drill.
5. When the bit breaks through the plasterboard, reduce speed to avoid splintering.
6. Withdraw the drill while it’s still rotating to clear dust.
7. Use a wall plug rated for the load you intend to support.

Always wear eye protection and a dust mask - plaster dust can be irritant.

Common Mistakes and How to Fix Them

• Drilling Too Deep: If you overshoot, you may crack the stud. Fill the hole with plaster filler and sand smooth.
• Missing a Stud: Anchors won’t hold. Re‑locate the stud with a stud finder, then re‑drill.
• Hitting Live Wiring: Shut off the circuit at the consumer unit before drilling near power points, and test again after the hole.
• Cracking Plasterboard: Use a slower speed and a sharp bit. If a crack appears, apply joint compound and let it dry before finishing.

When to Call a Professional

Even seasoned DIYers hit a wall (pun intended). Call a qualified carpenter or structural engineer if:

• The wall is identified as load‑bearing and you need a hole larger than 30 mm.
• You discover unexpected services like gas mains or sprinkler pipes.
• You’re installing heavy fixtures such as TV brackets or wall‑mounted appliances.

Professional input can save you from costly repairs and keep you compliant with the Building Regulations

Quick DIY Checklist

• Review construction drawings for service paths.
• Confirm wall is non‑load‑bearing or get engineer approval.
• Use a stud finder and voltage detector.
• Choose the right drill and bit for the material.
• Drill a pilot hole first.
• Wear safety gear (glasses, mask, gloves).
• Seal and finish the hole after fitting hardware.
